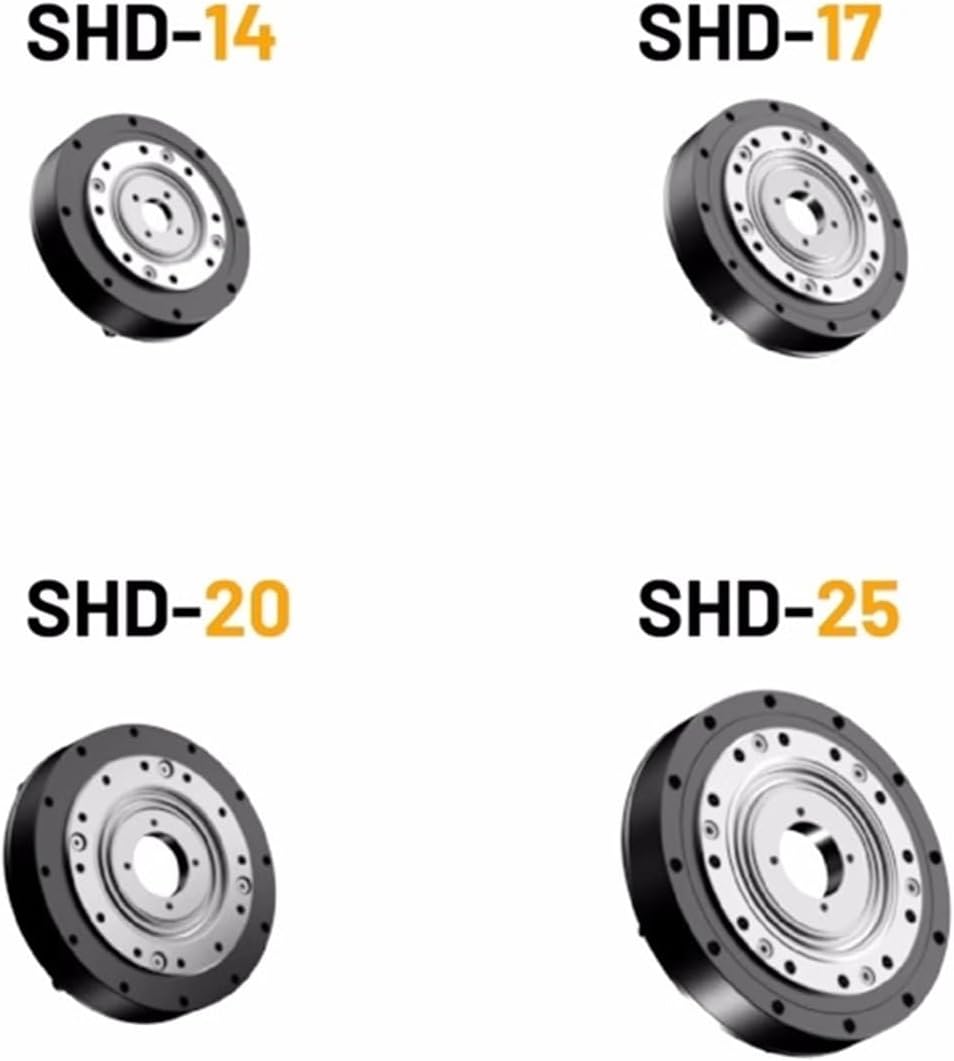

Harmonic Drive SHD-20 Series Precision Robot Gear Harmonic Reducer Horizontal Installation Reducer Reduction Ratio 30-50-80-100(Reduction Ratio 50)
Product details
| Management number | 221943630 | Release Date | 2026/05/04 | List Price | US$270.78 | Model Number | 221943630 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ReducersSHD-20Harmonic reducerDiameter: 90mmThickness: 19mmWeight: 0.515-0.512kgReduction ratio: 30, 50, 80, 100, 120Rated Tq when inputting 2000r/min: 10.2N.m, 17N.m, 22.4N.m, 28N.m, 28N.mAllowable peak Tq when starting and stopping: 23.4N.m, 39N.m, 45.6N.m, 57N.m, 61N.mAllowable maximum value of average load Tq: 14.4N.m, 24N.m, 27.2N.m, 34.8N.m, 34.8N.mInstantaneous maximum allowable Tq: 41.4N.m, 69N.m, 76N.m, 95N.m, 95N.mAllowable maximum input speed: 7000r/minAllowable average input speed: 3500r/minBacklash (arcsec): 20, 20, 10, 10, 10Moment of inertia (1/4GD) (kgcm2): 0.09.5 (Ix10-2), 0.09.2 (Jx10-5)
- Reducers
- Harmonic Drive SHD-20 Series Precision Robot Gear Harmonic Reducer Horizontal Installation Reducer Reduction Ratio 30-50-80-100
| Size | Reduction Ratio 50 |
|---|---|
| Color | One Color |
| Brand Name | XDAEZWFQ |
| Manufacturer | XDAEZWFQ |
| Model Number | XDAEZWFQ |
| Connector Type | Adapter |
| Exterior Finish | Alloy Steel |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Manufacturer Part Number | XDAEZWFQ |
